P-XLG200-24

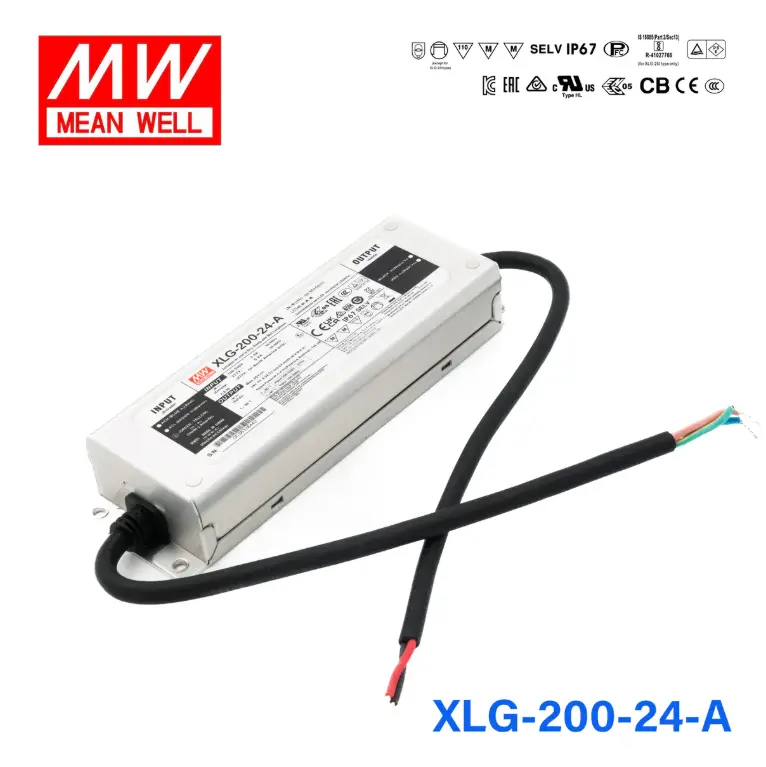

Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable
Features:
Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Lifetime > 50,000 hrs. and 5 years warranty
Specifications:
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over-voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+90°C |
| Safety standards | UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 199x63x35.5 |
- Brand
Mean Well - Series
XLG Series - Power Rating
199.2 Watt - Output Voltage
24 Volt - Rated Current
8.3 Ampere - Input Voltage
100V~305V - Standards Met
CB,CCC,CE,EAC,ENEC,RCM,UL - Operation Mode
Constant Current,Constant Voltage - Operating Temperature
-40°C~90°C - Warranty
5 Year
Orders with value greater than $100 (excluding GST) within Auckland urban free, otherwise please be in touch with us for quotation.
SDoC available for products that needed
